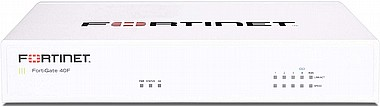

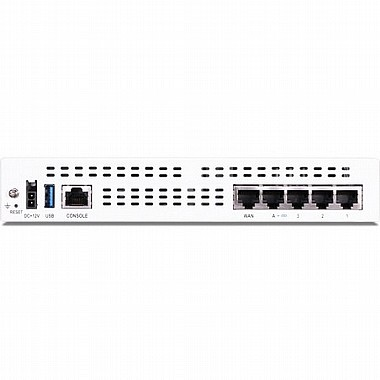

‏ראוטר FortiNet FortiGate-40F

Interfaces and Modules

Hardware Accelerated GE RJ45 WAN / DMZ Ports

1

Hardware Accelerated GE RJ45 Internal Ports

3

Hardware Accelerated GE RJ45 FortiLink Ports (Default)

1

Hardware Accelerated GE RJ45 PoE/+ Ports

0

Wireless Interface

0

USB Ports

1

Console Port (RJ45)

1

Onboard Storage

0

Included Transceivers

0

System Performance — Enterprise Traffic Mix

IPS Throughput ²

1 Gbps

NGFW Throughput ^{2, 4}

800 Mbps

Threat Protection Throughput ^{2, 5}

600 Mbps

System Performance and Capacity

IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)

5 / 5 / 5 Gbps

Firewall Latency (64 byte, UDP)

2.97 μs

Firewall Throughput (Packet per Second)

7.5 Mpps

Concurrent Sessions (TCP)

700,000

New Sessions/Second (TCP)

35,000

Firewall Policies

5,000

IPsec VPN Throughput (512 byte) ¹

4.4 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

200

Client-to-Gateway IPsec VPN Tunnels

250

SSL-VPN Throughput

490 Mbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

200

SSL Inspection Throughput

(IPS, avg. HTTPS) ³

310 Mbps

SSL Inspection CPS (IPS, avg. HTTPS) ³

320

SSL-VPN Throughput 490 Mbps

SSL Inspection Concurrent Session (IPS, avg. HTTPS) ³

55,000

Application Control Throughput (HTTP 64K) ²

990 Mbps

CAPWAP Throughput (HTTP 64K)

3.5 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

8

Maximum Number of FortiAPs (Total / Tunnel)

16 / 8

Maximum Number of FortiTokens

500

Maximum Number of Registered FortiClients

20,000

High Availability Configurations

Active, Active-Active, Passive, Clustering

Dimensions and Power

Height x Width x Length (inches)

1.5 x 8.5 x 6.3

Height x Width x Length (mm)

38.5 x 216 x 160

Weight

2.2 lbs (1 kg)

Form Factor

Desktop

Input Rating

12Vdc, 3A

Power Required

Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz

Power Consumption (Average / Maximum)

13.4 W / 15.4 W

Current (Maximum)

100V AC / 0.2A, 240V AC / 0.1A

Heat Dissipation

52.55 BTU/h

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

Fanless 0 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Radio Specifications

Multiple (MU) MIMO

0

Maximum Wi-Fi Speeds

0

Maximum Tx Power

0

Antenna Gain

0

Note: All performance values are “up to” and vary depending on system configuration.

1. IPsec VPN performance test uses AES256-SHA256.

2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.

3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.

4. NGFW performance is measured with Firewall, IPS and Application Control enabled.

5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.
