אל פסק Eaton 9SX3000IR 3000RM
אל פסק Eaton 9SX3000IR 3000RM
₪ 6,407
רכישה מאובטחת בכל כרטיס האשראי
טוען מוצרים נוספים
תיאור
מידע נוסף
טכנולוגיה
On-line double conversion
קונפיגורציה
Rack
תוכנה
+
יציאת מתח
(8) IEC-320-C13 (1)+ IEC-320-C19
כניסת מתח
(1) IEC-320-C20
ממשק
1 USB port + 1 serial RS232 port + 1 slot for Network
אחריות
שנתיים אתר לקוח
| General | |||||||||||
| Topology | On-line double conversion with PFC (Power Factor Correction) system | ||||||||||
| Configuration | Rack | ||||||||||
| Part Number | 9SX3000IR | ||||||||||
| Rating (VA/Watts) | 3000/2700 | ||||||||||
| Dimensions (H x W x D, mm) | 86.5 x 438 x 608 | ||||||||||
| Warranty | 2 years warranty | ||||||||||
| Electrical Input | |||||||||||
| Connection |
(1) IEC-320-C20
|
||||||||||
| Input Voltage Range | 200-276V without derating (up to 140-276V with derating) | ||||||||||
| Nominal Voltage | 200/208/220/230/240V | ||||||||||
| Frequency | 50/60 Hz autoselection | ||||||||||
| Frequency Range | 40-70 Hz | ||||||||||
| Electrical Output | |||||||||||

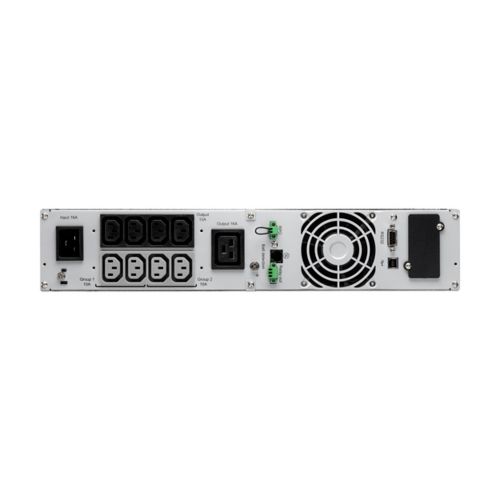

| Outlets |
(8) IEC-320-C13
(1) IEC-320-C19
|
||||||||||
| Output Frequency | 50/60 Hz autoselect, frequency converter as standard | ||||||||||
| Battery | |||||||||||
|
Runtime
(Minutes) 500
1000
1500
2000
2500
0
100
200
300
400
500
600
700
800
900
Load (Watts)
Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. Actual runtime may vary from +/- 15% around these typical values
Show: Hover over graph for detailed runtime values
|
|||||||||||
| Battery Management | ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. | ||||||||||
| Extended Battery Capability | EBM with Rack Kit | ||||||||||
| Communications | |||||||||||
| User Interface | Multilingual graphical LCD display | ||||||||||
| Communication Ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay | ||||||||||
| Communication Slot | 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards | ||||||||||
| Environmental & Standards | |||||||||||
| Audible Noise | <45dB | ||||||||||
| Operating Temperature | 0 to 40°C continuous | ||||||||||
| Safety markings | IEC/EN 62040-1, UL 1778, CSA 22.2 | ||||||||||
| EMC Markings | IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B | ||||||||||
| Approvals | CE /CB report (TUV) / cULus / EAC / RCM | ||||||||||
