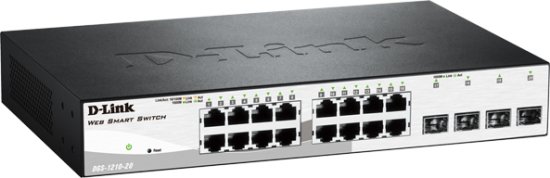

מתג חכם מנוהל D-Link DGS-1210-20 20 Ports Gigabit 10/100/1000Mbps
זמין במלאי יבואןמתג חכם מנוהל D-Link DGS-1210-20 20 Ports Gigabit 10/100/1000Mbps
₪ 949
טוען מוצרים נוספים
תיאור
מידע נוסף
- נתונים טכנים
- Port Standards & Functions
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX (Fast Ethernet)
• IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
• IEEE 802.3x Flow Control for Full-Duplex Mode
• Auto-negotiation
Number of Ports
• DGS-1210-20:
• 16 10/100/1000BASE-T
• 4 SFP
Network Cables
• UTP Cat.5, Cat.5e (100m max)
• EIA/TIA-568 100-ohm STP (100m max)
Full/Half Duplex
• Full/half duplex for 10/100Mbps speeds
• Full duplex for Gigabit speed
Media Interface Exchange
• Auto or configurable MDI/MDI-X
Switching Capacity
• DGS-1210-20: 40 Gbps
Transmission Method
• Store-and-forward
MAC Address Table
• 16,000 entries per device
MAC Address Update
• Up to 256 static MAC entries
• Enable/disable auto-learning of MAC addresses
Maximum 64 bytes packet forwarding rate
• DGS-1210-20: 29.8 Mpps
Packet Buffer Memory
• DGS-1210-20: 1.5 MB
PoE Standard
• IEEE 802.3af & IEEE 802.3at
L2 Features
• MAC Address Table
• 16K entries
• IGMP Snooping
• IGMP v1/v2 Snooping
• Supports 256 IGMP groups
• Supports at least 64 static multicast addresses
• IGMP per VLAN
• Supports IGMP Snooping Querier
• Loopback Detection
• LLDP
• LLDP-MED
• Jumbo Frame
• Up to 9,216 bytes
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Port Mirroring
• One-to-One
• Many-to-One
• Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
• Forwards all unregistered groups
• Filters all unregistered groups
• Configurable MDI/MDIX
• MLD snooping v1/v2 (256 groups)
VLAN
• 802.1Q
• VLAN Group
• Max. 256 static VLAN groups
• Configurable VID from 1 – 4094
• Asymmetric VLAN
• Auto Voice VLAN
• Max. 10 user-defined OUI
• Max. 8 default OUI
• Auto Surveillance VLAN
QoS (Quality of Service)
• 802.1p Quality of Service
• 8 queues per port
• Queue Handling
• Strict
• Weighted Round Robin (WRR)
• Bandwidth Control
• Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
• QoS based on:
• 802.1p Priority Queues
• DSCP
• ToS
• IPv6 Traffic Class
• TCP/UDP port
L3 Features
• IP Interface
• Supports 1 interface
• IPv6 Neighbor Discovery (ND)
Access Control List (ACL)
• Max. 50 access list
• Max. 768 rules shared by IPv4, MAC and IPv6
• Each rule can only be associated with a single port
• ACL based on
• 802.1p priority
• VLAN
• MAC address
• Ether type
• IP address
• DSCP
• Protocol type
• TCP/UDP port number
• IPv6 Traffic Class
Security
• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• DHCP Server Screening
• IP-MAC-Port Binding (Smart Binding)
• Supports 512 address binding entries
• ARP Inspection
• ARP + IP Inspection
• Supports DHCP Snooping
• 802.1X Port-based Access Control
• ARP Spoofing Prevention
• Max. 64 entries
• Traffic Segmentation
• SSH v2
• SSL
• Supports v1/v2/v3
• Port Security
• Supports up to 64 MAC addresses per port
• Duplicate address detection
AAA
• 802.1X Authentication
• Supports local/RADIUS database
• Supports port-based access control
• Supports EAP, OTP, TLS, TTLS, PEAP
• IPv6 RADIUS Server
• Support MD5 authentication
MIB/RFC Standards
• RFC 783 TFTP
• RFC 951 BootP/DHCP Client
• RFC 1157 SNMP v1, v2, v3
• RFC 1213 MIB II
• RFC 1215 MIB Traps Convention
• RFC 1350 TFTP
• RFC 1493 Bridge MIB
• RFC 1769 SNTP
• RFC 1542 BootP/DHCP Client
• RFC 1901 SNMP v1, v2, v3
• RFC 1907 SNMP v2 MIB
• RFC 1908 SNMP v1, v2, v3
• RFC 2131 BootP/DHCP Client
• RFC 2138 RADIUS Authentication
• RFC 2139 RADIUS Authentication
• RFC 2233 Interface Group MIB
• RFC-2246 SSL
• RFC 2475
• RFC 2570 SNMP v1, v2, v3
• RFC 2575 SNMP v1, v2, v3
• RFC 2598 CoS
• RFC 2618 RADIUS Authentication
• RFC 2819 RMON v1
• RFC 2865 RADIUS Authentication
• RFC 3164 System Log
• RFC 3195 System Log
• RFC 3411-17 SNMP
• D-Link Private MIB
• LLDP MIB
• Zone Defense MIB
• 2233 Interface Group MIB
OAM
• Cable Diagnostics
• Factory Reset
Management
• Web-based GUI
• D-Link Network Assistant Utility
• Compact CLI
• Telnet Server
• TFTP Client
• Configurable MDI/MDIX
• SNMP
• Supports v1/v2c/v3
• SNMP Trap
• Backup/Upgrade firmware
• Smart Wizard
• Upload/Download Configuration file
• System Log
• Max. 500 log entries
• BootP/DHCP Client
• SNTP
• ICMP v6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• Time Setting
• SNTP
• RMONv1
• Trusted Host
Green v3.0 Technology
• Power Saving by:
• Link Status
• Time-based PoE: PoE ports can be turned on/off by port or system through schedule
• LED Shutoff
• System Hibernation
• Port Shutoff
- נתונים פיזיים
- AC Input
• 100 to 240 VAC 50/60Hz internal universal power supply
Maximum Power Consumption
• DGS-1210-20: 16.09W
Standby Power Consumption
• DGS-1210-20: 8.59W/110V, 8.80W/240V
Fan Quantity
• DGS-1210-20: 0
Acoustics
• DGS-1210-20: 0 dB(A)
Heat Dissipation
• DGS-1210-20: 54.91 BTU/hr.
Operating Temperature
• 23° to 122°F (-5° to 50°C)
Storage Temperature
• -4° to 158°F (-20° to 70°C)
Operating Humidity
• 0% to 95% non-condensing
Storage Humidity
• 0% to 95% non-condensing
Dimensions
• DGS-1210-20:
• 11.02 x 7.09 x 1.73 in. (280 x 180 x 44 mm)
• 19-inch standard rack mounting width, 1U height
Weight
• DGS-1210-20: 2.82 lbs (1.28 kg)
Diagnostic LEDs
• Power (per device)
• Link/Activity/Speed (per 10/100/1000Mbps port)
• Link/Activity (per SFP port)
Certifications
• FCC Class A
• CE Class A
• ICES-003
• VCCI Class A
• C-Tick
• BSMI
Safety
• cUL
• CE LVD
